Bridgeport Mill Parts and Service |
variable speed upper housing | variable speed lower housing | quill housing | leadscrew assembly | step pulley housing | base machine assembly | Knee Mill Service - How To Tips
Machinist, Metalworking, And Industrial Supplies Catalog |                                Click this link to Cutting Tools catalog
     Supplies like Calipers, Micrometers, Indicators, Vises,                                                       Drills, End Mills, R8, 40 Taper, Turning Tools, Inserts
    Readouts, Power feeds, Tooling, Edge Finders                                                                  Face Mills, Cutoff Blades  Wholesale Prices



To view other machine parts listings click on the above links:   ^
Some States I cannot ship to: Kansas   Oklahoma   Maine   New Hampshire   Vermont   Connecticut   Massachuetts
Tennessee area codes 901 731   Texas area codes 940 682 817 903 972 468 254 214   These areas have local distributors
U.S. Sales only No overseas
To order parts:
1- Find item# from the listing below  \/                                                                                    Phone orders call * 800-746-9550 * 314-638-1227
2- Locate the item# and description in the Add to cart area                                                                              Call Days, Evenings, Weekends
3- Press Add to cart button. This takes you to checkout.                                                                                  If I'm here I answer the phone
   Please give this a few seconds to update the page                                                                                          Please leave message if no answer
4- You can checkout or return to this or other pages for more shopping                                                           Fax orders toll free 866-219-3613
5- Upon checkout this will take you to Paypal's secure site for processing
  You can pay with Credit Card or E-check. Be sure to leave ship to address and PO# if needed
  You can skip Paypal registration
  Shipping is flat rate of $10.00. Taxes may apply within Missouri
  Usually 1-4 day delivery. Orders under $30 may take longer to ship


Arch City Service 314-638-1227 * 800-746-9550 fax toll free 866-219-3613 please leave message  parts@archcity.net

After pressing Add to Cart button please give the page a few seconds to update

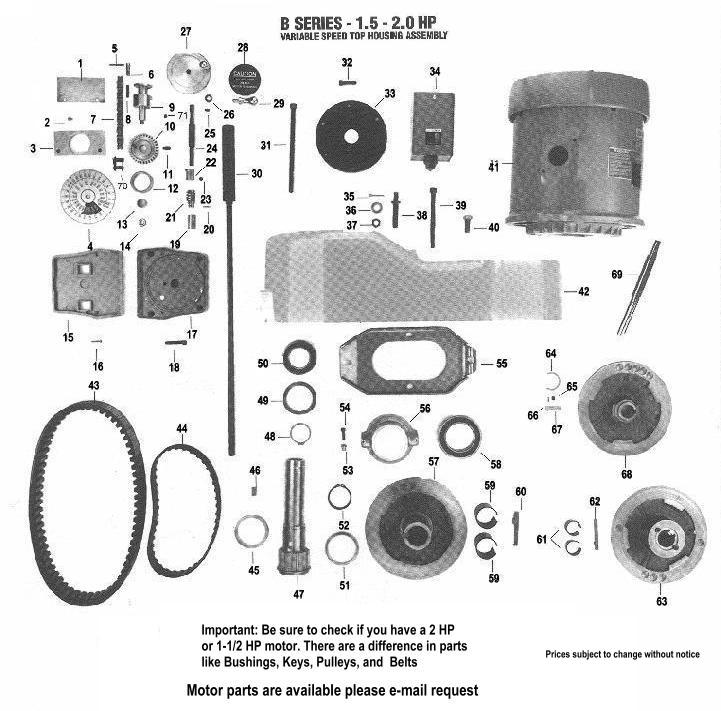

#1
 1459- Chip Shield $6.00
#2
 1460- Screws $1.00
#3
 1603- Block $37.00
#4A
 1455A- 1-1/2HP Dial $10.00
#4B
 1455B- 2HP Dial $10.00
#5
 1463- Bushing $2.00
#6
 1464- Stud $19.00
#7
 1465- Chain $18.50
#8
 1462- Roll Pin $2.00
#9
 1488- Chain Drum $64.00
#10
 1487- Spur Gear $39.00
#11
1457- Set Screw $2.50
#12
 1461- Bronze bearing $7.00
#13
 1348- Bronze Bearing $4.00
#14
1132-03- Hex Nut $0.75
#15
 1478- Face Plate $23.00
#16
 1477- Cap Screw $0.75
#17
 1458- Housing $66.00
#18
 1480- Cap Screw $0.75
#19
 1472- Bronze Bearing $14.00
#20
1356 Roll Pin $4.00
#21
 1343- Worm gear $49.00
#22
 1472- Bronze Bearing $13.00
#23
 1307- Set Screw $2.00
#24
 1473A- Shaft $29.00
#25
 1479- Set Screw $1.00
#26
1471- Wave Washer $3.75
#27
 1476- Handwheel $49.00
#28
 1475- Caution Plate $12.00
#29
 1474- Handle $18.00
#30
 1026- Drawbar $39.00
#31
 1544- Cap Screw $9.00
#32
 1195- Cap Screw $0.75
#33
 1468- Bearing Cap $90.00
#34
 1466- Drum Switch $350.00
#35
 1552- Cotter Pin $0.75
#36
 1555- Washer $3.00
#37
 1545- Jam Nut $0.75
#38
 1553- Pivot Stud $18.00
#39
1469- Cap Screw $3.75
#40
 1548- Screw $1.00
#41A
1546- Motor 1-1/2 HP $770.
Call for shipping charges
#41B
 1547- Motor 2 HP $778.00
Call for shipping charges
Call for pricing #42
 1467- Belt Housing N/A
#43
 1105- VariSpeed Belt $105.00
#44A
1115 Timing Belt $50.00
#44B
 1536- Timing Belt $53.00
#45
 1564- Spacer $29.00
#46
 1573- Key $3.00
#47A
 1117- Hub 1-1/2 HP $325.00
#47B
 1537- Hub 2 HP $269.00
#48
 1543- Snap Ring $3.00
#49
 1508- Wave Washer $6.00
#50
 1542- Bearing $50.00
#51
 1489- Pulley Sleeve $27.00
#52
 1560- Snap Ring $3.00
#53
 1556- Pivot Sleeve $8.00
#54
1554 Cap Screw $0.75
#55
 1551- Plate $50.00
#56
 1557- Bearing Housing $60.00
#57
 1559- Adj. Varidisc $195.00
#58
 1558- Bearing $85.00
#59
 1126- Bushing $5.00
#60
 1095- Key $4.00
#61A
 1113- Bushing 1-1/2 HP $5.00
#61B
 1114- Bushing 2 HP $5.00
#62A
 1035B- 1-1/2 HP Key $5.00
#62B
 1035A- 2 HP Key $25.00
#63A
1037- 1-1/2 HP Varidisc $280.
includes key, bushings,
spring and collar
#63B
 1036- 2 Hp Varidisc $275.00
includes key, bushings,
spring and collar
#64A
 1571- Snap Ring 1-1/2HP $3.00
#64B
 1599- Snap Ring 2HP $4.00
#64C
 016-0070- Ret. Ring CNC $4.00
#65
 1307- Set Screw $0.75
#66A
 1567- Pin (1-1/2 HP Key) $0.75
#66B
 1407- Pin (2 HP Key) $0.75
#67A
 1568- 1-1/2 HP Key $5.00
#67B
 1597- 2 HP Key $23.00
#68A
 1569- 1-1/2 HP Varidisc $120.00
#68B
 1598- 2 HP Varidisc $160.00
#69A
1546-01- 1-1/2 HP Shaft $160.
#69B
 1547-01- 2 HP Shaft $170.00
#69C
1547-03- Motor Shaft CNC $195.
#70A
1546-08
1-1/2 HP Rotor Assembly
Compltete with shaft
Requires return of
old rotor Assembly
$328.00
Price includes
$100 core return refund
#70B
1547-08
2 HP Rotor Assembly
Compltete with shaft
Requires return of
old rotor Assembly
$430.00
Price includes
$100 core return refund
#71
 037-0113- Link $4.50
#72
 1311- Key $4.00
#73
 1582- Lube Data Plate $8.00
#74
 1574-Taper Pin $3.00
#75
 1523- Cap Screw $1.00
#76
 1525- Pulley Cover $80.00
#77
 1524- Cap Screw $1.00
