To order parts:
1- Find item# from the listing below  \/                                                                                    Phone orders call * 800-746-9550 * 314-638-1227
2- Locate the item# and description in the Add to cart area                                                                              Call Days, Evenings, Weekends
3- Press Add to cart button. This takes you to checkout.                                                                                  If I'm here I answer the phone
   Please give this a few seconds to update the page                                                                                          Please leave message if no answer
4- You can checkout or return to this or other pages for more shopping                                                           Fax orders toll free 866-219-3613
5- Upon checkout this will take you to Paypal's secure site for processing
  You can pay with Credit Card or E-check. Be sure to leave ship to address and PO# if needed
  You can skip Paypal registration
  Shipping is flat rate of $10.00. Taxes may apply within Missouri
  Usually 1-4 day delivery. Orders under $30 may take longer to ship


Arch City Service 314-638-1227 * 800-746-9550 fax toll free 866-219-3613 please leave message  parts@archcity.net

After pressing Add to Cart button please give the page a few seconds to update

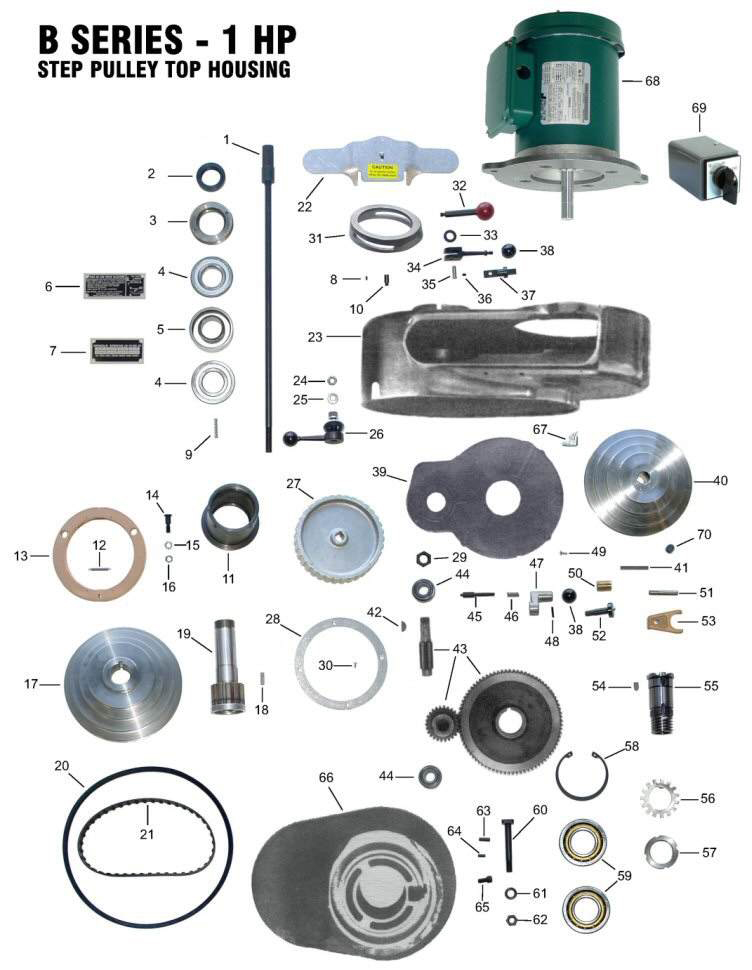

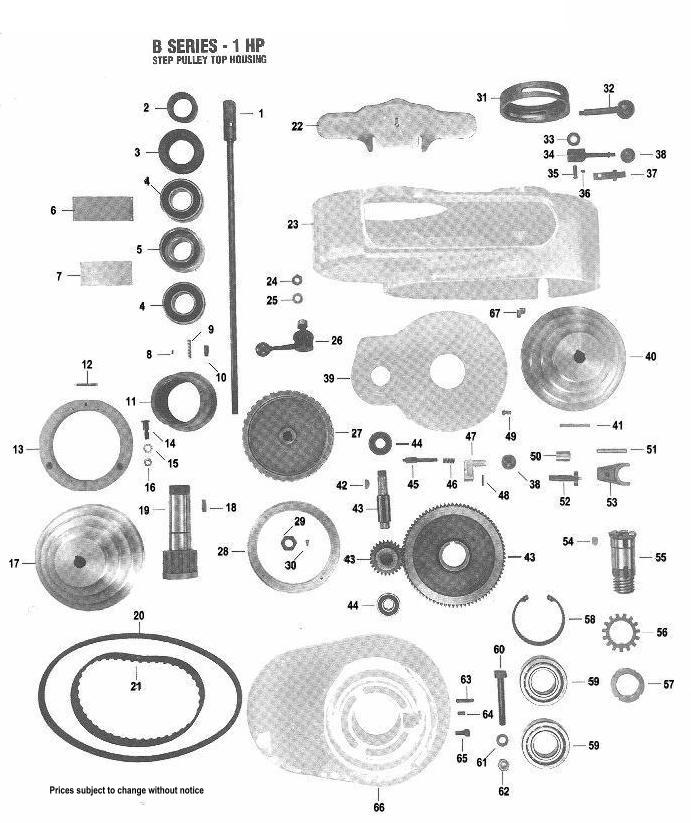

#1
 1028- Drawbar $39.00
#2
 1141- locknut $49.00
#3
 1142- locknut $60.00
#4
 1251- bearing $40.00
#5
 1252- spacers $60.00
#6
 1074- Hi-Lo Nameplate $23.00
#7
 1075- Speed Nameplate $24.00
#8
 1254- Socket set screw $2.00
#9
 1108- Spring $8.00
#10
 1109- Cam Ring Pin $12.00
#11
1128- Pulley Brng Sleeve $165.00
#12
 1111-02- Brake Spring $5.00
#13
 1111- Brake Block $98.00
#14
1132-01- Brake Screw $15.00
#15
  1132-02- Lock Washer $1.50
#16
  1132-03- Hex Jam Nut $1.50
#17
 1255- Spindle Pulley $325.00
#18
 1125- Key $5.00
#19
1116-Spindle Pulley Hub $305.00
#20
 1256 "V" Belt $19.00
#21
 1115- Timing Belt $55.00
#22
 1301-1Ea Belt Guard $39.00
Call for Pricing #23
 1266- Belt Housing N/A
#24
 1264- Jam Nut $1.75
#25
 1265- Lock Washer $0.75
#26
1155-03-Locknut Assy $58.00
#27
 1146- Timing Pulley $220.00
#28
 1144- Pulley Flange $49.00
#29
 1258- Jam Nut $2.50
#30
 1257- Flat Head Screw $0.75
#31
 1143- Cam Ring $140.00
#32
 1100- Clutch Lever $29.00
#33
 1200- Lock Washer $4.00
#34
 1261- Brake handle $37.00
#35
 1262- Brake Lock Pin $7.00
#36
 1260- Set Screw $2.00
#37
 1107- lock Stud $34.00
#38
 1259- Plastic Ball $7.00
#39
 1269- Housing Cover $125.00
#40
 1268- Motor Pulley $340.00
#41
 1268-01- Pulley Key $7.00
#42
 1275- Key $6.00
#43
 1276- Bull Gear $1,100.00
#44
 1277- Bearing $18.00
#45
1299 Gearshift Plunger $16.00
#46
 1300- Spring $8.00
 #47
 1297- Shift Crank $27.00
#48
 1295- Roll Pin $2.00
#49
 1270- Screw $2.00
#50
 1296- Bushing $23.00
#51
 1281- Pin $2.00
#52
 1294- Shift Crank $33.00
#53
 1282- Shift Fork $100.00
#54
 1530- Key $4.00
#55
 1160- Splined Hub $350.00
#56
 1289- Lockwasher $11.00
#57
1290 Bearing Locknut $20.00
#58
 1288- Snap Ring $10.00
#59
 1287- Bearing $150.00ea
#60
 1292- Tee Bolt $29.00
#61
 1496- Washer $5.00
#62
 1291- Hex Nut $2.00
#63
 1284- Dowel Pin $0.75
#64
 1285- Roll Pin $0.75
#65
 1286- Cap Screw $0.75
Call for Pricing #66
 1283- Gear Housing N/A
#67
 1273- Oil Cup $30.00
#67
 1272- Oiler tube $53.00
#68
Step Pulley Motor
Call for Pricing
#69
 Drum Switch
Call for Pricing
">
