Arch City Service 314-638-1227 800-746-9550 fax toll free 866-219-3613 please leave message  parts@archcity.net

After pressing Add to Cart button please give the page a few seconds to update .00

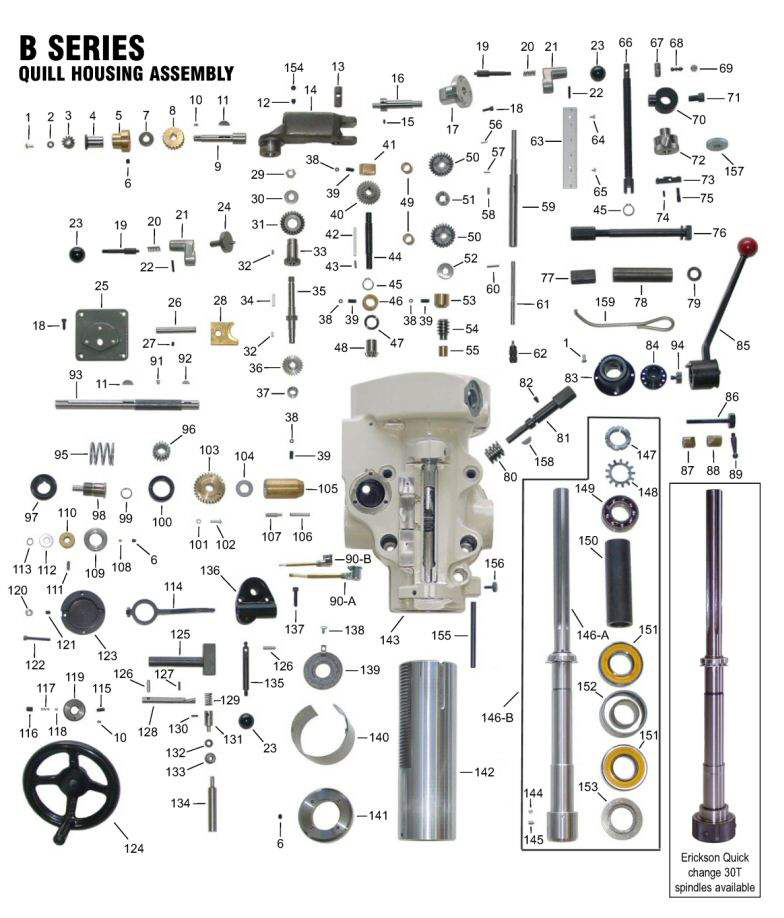

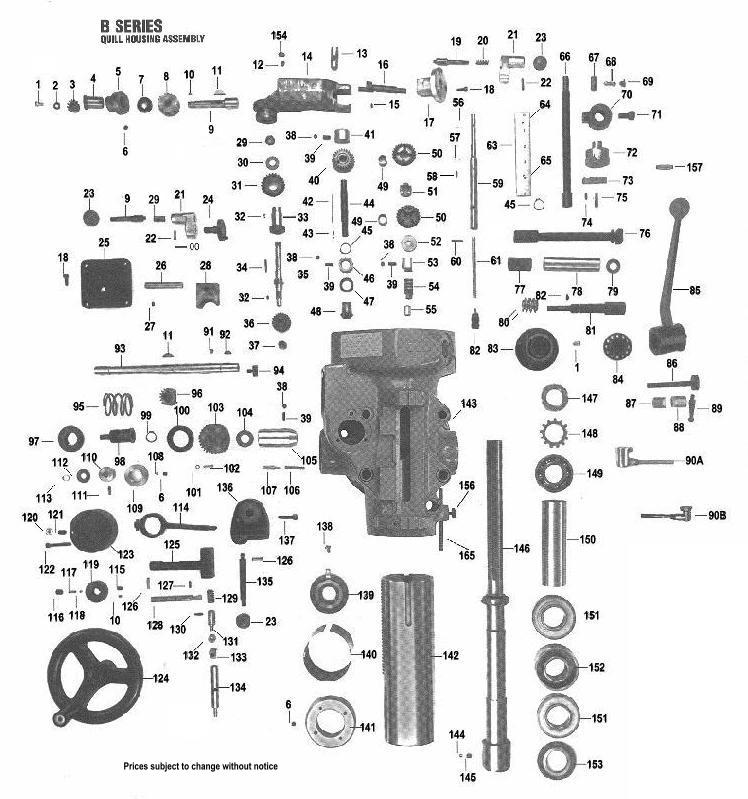

#1
 1270- Screw $1.50
#2
 1303- Washer $1.75
#3
 1304- Pinion $80.00
#4
 1305- Shaft Sleeve $40.00
#5
 1306- Bushing $40.00
#6
 1307- Set Screw $2.00
#7
 1308- Spacer $8.50
#8
 1309- Worm Gear $44.00
#9
 1310- Worm Shaft $35.00
#10
 1311- Shaft $2.75
#11
1179- Key $3.00
#12
 1222- Set Screw $1.00
#13
 1317- Engage Pin $16.00
#14
1318- Cradle $255.00
#15
  1254- Set Screw $3.00
#16
  1319- Throw-out $34.00
#17
 1320- Shift Sleeve $52.00
#18
 1326- CAp Screw $0.75
#19
 1299- Plunger $18.00
#20
1300 Spring $7.50
#21
 1297- Shift Crank $28.00
#22
 1295- Roll Pin $2.00
#23
 1259- Black Plastic ball $7.00
#24
 1361- Shift Crank $35.00
#25
 1363- Cover $65.00
#26
1357- Shift Rod $8.00
#27
 1358- Set Screw $0.75
#28
 1360- Shift Fork $34.00
#29
 1303- Locknut $9.00
#30
 1314- Washer $6.50
#31
 1316- Bevel Gear $65.00
#32
 1315- Key $3.50
#33
 1337- Feed Gear $44.00
#34
 1338- Key $5.00
#35
 1339- Input Shaft $86.00
#36
 1340- Drive Gear $89.00
#37
 1341- Bearing $9.00
#38
 1346- Lockscrew $2.50
#39
1345- Set Screw $0.75
#40
 1329- Gear Assy $89.00
#41
 1328- Bearing $39.00
#42
 1330- Key $3.50
#43
 1331- Key $4.00
#44
 1332- Shaft $85.00
#45
1333 Snap Ring $2.50
#46
 1334- Bearing $30.00
#47
 1335- Spacer $15.00
#48
 1336 Feed Reverse Bevel Pinion $68.00
#49
 1348- Bushing $4.00
#50
 1349- Rev Bevel Gear $63.00
#51
 1350- Rev. Clutch $33.00
#52
 1347- Washer $4.50
#53
 1344- Bushing $28.00
#54
 1343- Shaft $53.00
#55
 1342- Bushing $8.50
#56
 1356- Pin $5.00
#57
1355 Pin $4.00
#58
 1359- Key $2.75
#59
 1354- Worm Shaft $92.00
#60
 1353- Roll Pin $0.75
#61
 1120- Clutch Rod $19.00
#62
 1030- Knob Assy $28.00
#63
 1165- Scale $15.00
#64
 1434A- Upper Screw $3.00
#65
 1434B- Lower Screw $3.00
#66
 1033- Microscrew $60.00
#67
 1451- Plunger $17.00
#68
 1033-03- Trip Ball Lever $30.00
#69
 1452- Lever Screw $19.00
#70
 1438- Stop Knob $49.00
#71
 1439- Cap Screw $2.75
#72
 1053- Quick Nut $50.00
#73
 1033-02- Feed Trip Lever $30.00
#74
 1426- Key $2.50
#75
 1427- Trip Lever Pin $10.00
#76
 1431- T-Bolt Assy $24.00
#77
 1433- Locknut $10.00
#78
 1432- Bolt Spacer $25.00
#79
 1200- Washer $3.50
#80
 1096- Worm Gear $65.00
#81
 1097- Adj. Worm Shaft $40.00
#82
 1453- Set Screw $1.00
#83
 1112- Clock Spring $42.00
#84
 1448- Hub Sleeve $54.00
#85
 1021- Quill Handle $42.00
#86
 1429- Quill Lock Bolt $38.00
#87
 1428- Lock (tapped) $29.00
#88
 1430- Lock (untapped) $30.00
#89
 1151- Lock Handle $28.00
#90A
 1272- Oiler Tube $43.00
#90B
 037-0246- Oil Tube $45.00
#91
 1442- Spring Pin $10.00
#92
 1445- Key $2.00
#93
 1440- Shaft $105.00
#94
 1124- Hub Screw $17.00
#95
 1138- Clutch Spring $20.00
#96
 1449- Pinion Gear $44.00
#97
 1139- Overload Clutch $63.00
#98
 1376- Clutch Sleeve $43.00
#99
 1381- Snap Ring $4.00
#100
 1140- Clutch Ring $52.00
#101
 1377- Washer $0.75
#102
1378- Screw $0.75
#103
 1386- Worm Gear $59.00
#104
 1385- Gear Spacer 15.00
#105
1384- Shaft Bushing $55.00
#106
 1108- Spring $7.00
#107
  1383- Spring Plunger $9.00
#108
 1374- Brass Plug $7.00
#109
 1375- Clutch locknut $18.00
#110
 1372- Clutch Ring $32.00
#111
1371 Clutch Ring Pin $7.00
#112
 1389- Clutch Washer $13.00
#113
 1390- Snap Ring $2.00
#114
 1388- Trip Lever $85.00
#115
 1399- Set Screw $0.75
#116
 1404- Spring Screw $8.00
#117
1403- Spring $6.50
#118
 1402- Steel Ball $1.75
#119
 1401- Handwheel Clutch $21.00
#120
 1393- Locknut $0.75
#121
 1392- Set Screw $0.75
#122
 1370- Cap Screw $0.75
#123
 1391- Cover $44.00
#124
 1413- Handwheel $76.00
#125
 1406- Sleeve $83.00
#126
 1387- Dowel Pin $1.00
#127
 1405- RollPin $0.75
#128
 1394- Cam Rod $34.00
#129
 1408- Spring $8.00
#130
1407- RollPin $0.75
#131
 1409- Trip Plunger $35.00
#132
 1410- Bushing $17.50
#133
 1411- Bushing $19.00
#134
 1412- Trip Plunger $19.00
#135
 1395- Trip Handle $28.00
#136
1397 Bracket $80.00
#137
 1195- Cap Screw $0.75
#138
 1435- Screw $5.50
#139
 1164- Felt washer $19.00
#140
 1415- Quill Skirt $19.00
#141
 1420- Nose Piece $59.00
Call #142
 1425- Quill $605.00
Call for Pricing #143
 1454- Quill hosing N/A
#144
 1424- Set Screw $5.00
#145
 1137- Collet Screw $13.00
#146A
 1414- R/8 Spindle $750.00
#146B
 1414A- Spindle Assy $1,500.00
#147
1416 Locknut $15.00
#148
 1417- Lockwasher $11.00
#149
 1418- Upper Bearing $160.00
#150
 1419- Sleeve $45.00
#151
 1422- Bearing Set $450.00
#152
 1423- Bearing Spacer $60.00
#153
 1421- Dirt Shield $35.00
#154
 1351- Set Screw $2.75
#155
 037-0248- Indicator Rod $16.50
#156
 037-0249- Screw $7.50
#157
 037-0250- Jam Nut $24.00
#83
 038-0330
- Heavy Duty Clock Spring $62.00
