To order parts:
1- Find item# from the listing below  \/                                                                                    Phone orders call * 800-746-9550 * 314-638-1227
2- Locate the item# and description in the Add to cart area                                                                              Call Days, Evenings, Weekends
3- Press Add to cart button. This takes you to checkout.                                                                                  If I'm here I answer the phone
   Please give this a few seconds to update the page                                                                                          Please leave message if no answer
4- You can checkout or return to this or other pages for more shopping                                                           Fax orders toll free 866-219-3613
5- Upon checkout this will take you to Paypal's secure site for processing
  You can pay with Credit Card or E-check. Be sure to leave ship to address and PO# if needed
  You can skip Paypal registration
  Shipping is flat rate of $10.00. Taxes may apply within Missouri
  Usually 1-4 day delivery. Orders under $30 may take longer to ship


Arch City Service 314-638-1227 800-746-9550 Fax Toll Free 866-219-3613 please leave message  parts@archcity.net

After pressing Add to Cart button please give the page a few seconds to update

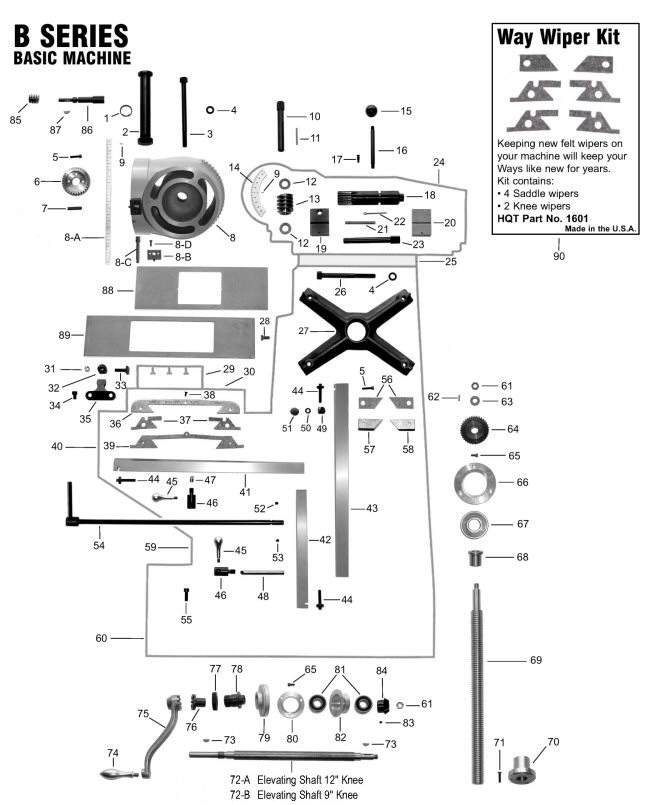

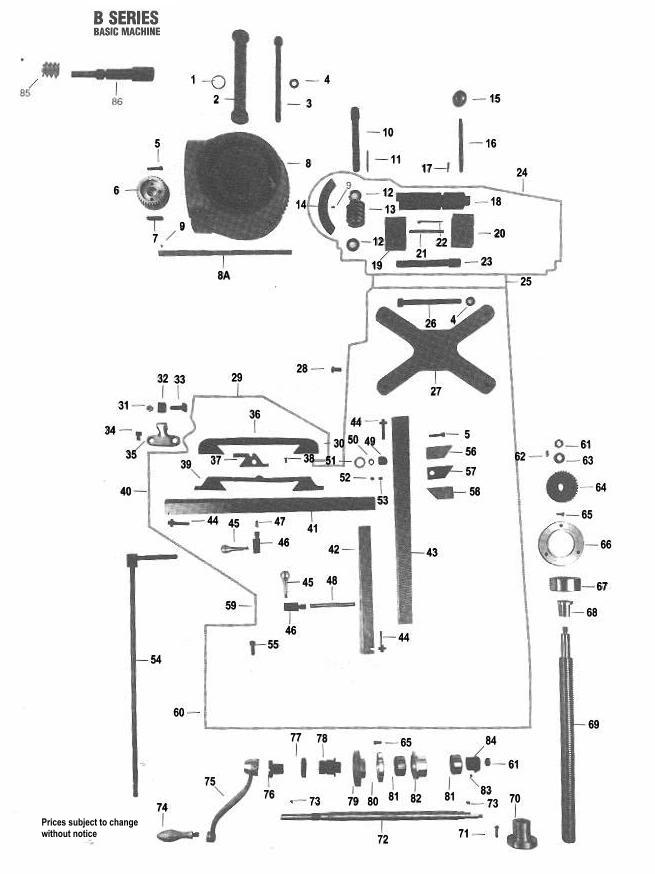

#1
 1188- Snap Ring $1.75
#2
 1199- Pivot Pin $65.00
#3
 1201- Bolt $16.00
#4
 1200- Washer $3.50
#5
 1195- Cap Screw $0.75
#6
 1186- Gear $169.00
#7
 1196- Roll Pin $1.50
#8
 1187- Ram Adapter $798.00
#8A
 1187A- Scale $15.00
#
 1250- Stop Brkt $39.00
#
 1251A- Stop Pin $34.00
#
 1502- Cap Screw $1.00
#9
 1198- Rivet Screw $1.50
#10
 1192- Shaft $59.00
#11
1286-01- Worm Key $5.00
#12
 1191- Washer $10.00
#13
 1190- Gear $120.00
#14
1197- Angle Plate $9.00
#15
  1245- Ball $5.50
#16
  1159- Handle $22.00
#17
 1249- Pinion Screw $20.00
#18
 1244- Pinion $105.00
#19
 1129-02- Clamp tapped $40.00
#20
1129-01 Clamp Untapped $40.00
#21
 1129-04- Clamp Bar $11.00
#22
 1247- Split Pin $0.90
#23
 1129-03- Stud $40.00
Call for Pricing #24
 1194- Ram N/A
Call for Pricing #25
 1246- Turret N/A
#26
1248-Locking Bolt $13.00
#27
 1243- Spider $98.00
#28
 1148- Stop Screw $8.00
Call for Pricing #29
 1202- Table N/A
Call for Pricing #30
 1211- Saddle N/A
#31
 1205- Hex Nut $3.00
#32
 1204- Table Lock $18.00
#33
 1203- T-Bolt $12.50
#34
 1208- Cap Screw $2.00
#35
 1209- Bracket $49.00
#36
 1153- Wiper Plate $37.00
#37
 1154- Wipers $7.25
#38
 1152- Screw $1.00
#39
1602-Full Length Wiper $14.00
Call for Pricing #40
 1217- Knee 12" N/A
#41
 1156- X-Gib $115.00
#42
 1157- Y-Gib $105.00
#43
 1158- Knee Gib $115.00
#44
 1106- Gib Screw $15.00
#45
1122 Lock handle $29.00
#46
 1206- Lock Bolt $20.00
#47
 1219- Plunger $30.00
#48
 1207- Plunger $20.00
#49
 1219- Plunger $30.00
#50
 1220- washer $1.50
#51
 1221- Binder Plug $4.50
#52
 1223- Set Screw $1.00
#53
 1222- Set Screw $1.00
#54
 1218- Shaft $120.00
#55
 1175- cap Screw $1.50
#56
 1163- Knee Wiper $7.00
#57
1212 Left Holder $19.00
#58
 1214- Right Holder $19.00
Call for Pricing #59
 1241- Pedestal N/A
Call for Pricing #60
 1239- Column N/A
#61
 1166- Jam Nut $2.00
#62
 1224- Hex Nut $3.50
#63
 1225- Washer $3.50
#64
 1226- Bevel Gear $180.00
#65
 1171- Cap Screw $2.00
#66
 1228- Retainer Ring $65.00
#67
 1227- Bearing $110.00
#68
 1227A- Bearing Sleeve $40.00
#69
 1071- Elevating Screw $190.00
#70
 1072- Elev. Nut $110.00
#71
 1242- Cap Screw $1.00
#72A
 1236A- Elev. Shaft $110.00
#72B
 1236B- Elev. Shaft 9" $110.00
#73
 1179- Key $3.00
#74
 1145-02- Crank Handle $28.00
#75
 1145-01- Elev. Crank $65.00
#76
 1230- Clutch Insert $40.00
#77
 1168- Dial Lock $15.00
#78
 1232- Dial Holder $50.00
#79
 1231- Dial $90.00
#80
 1172- Bearing Ring $25.00
#81
 1178- Bearing $45.00
#82
 1235- Bearing Cap $50.00
#83
 1238- Set Screw $1.00
#84
 1237- Bevel Pinion $65.00
#
 1215- Upper Guard $60.00
#
 1216- Lower Guard $115.00
#85
 1096- Worm Gear $65.00
#86
 1097- Worm Shaft $40.00
#
 1601- Way Wiper Set
all 6 Knee and Saddle $31.00
